Overview

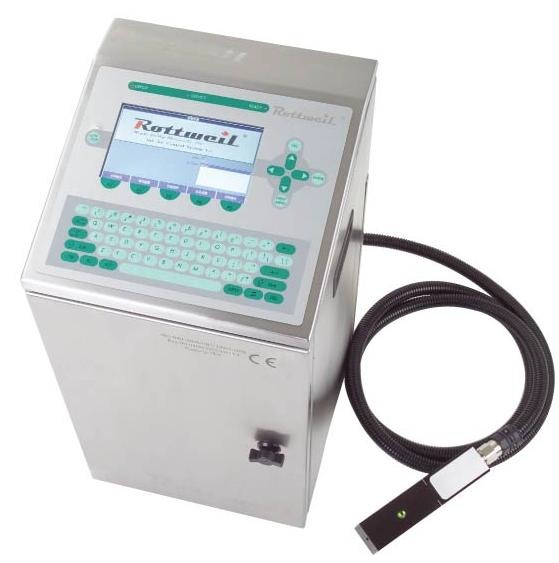

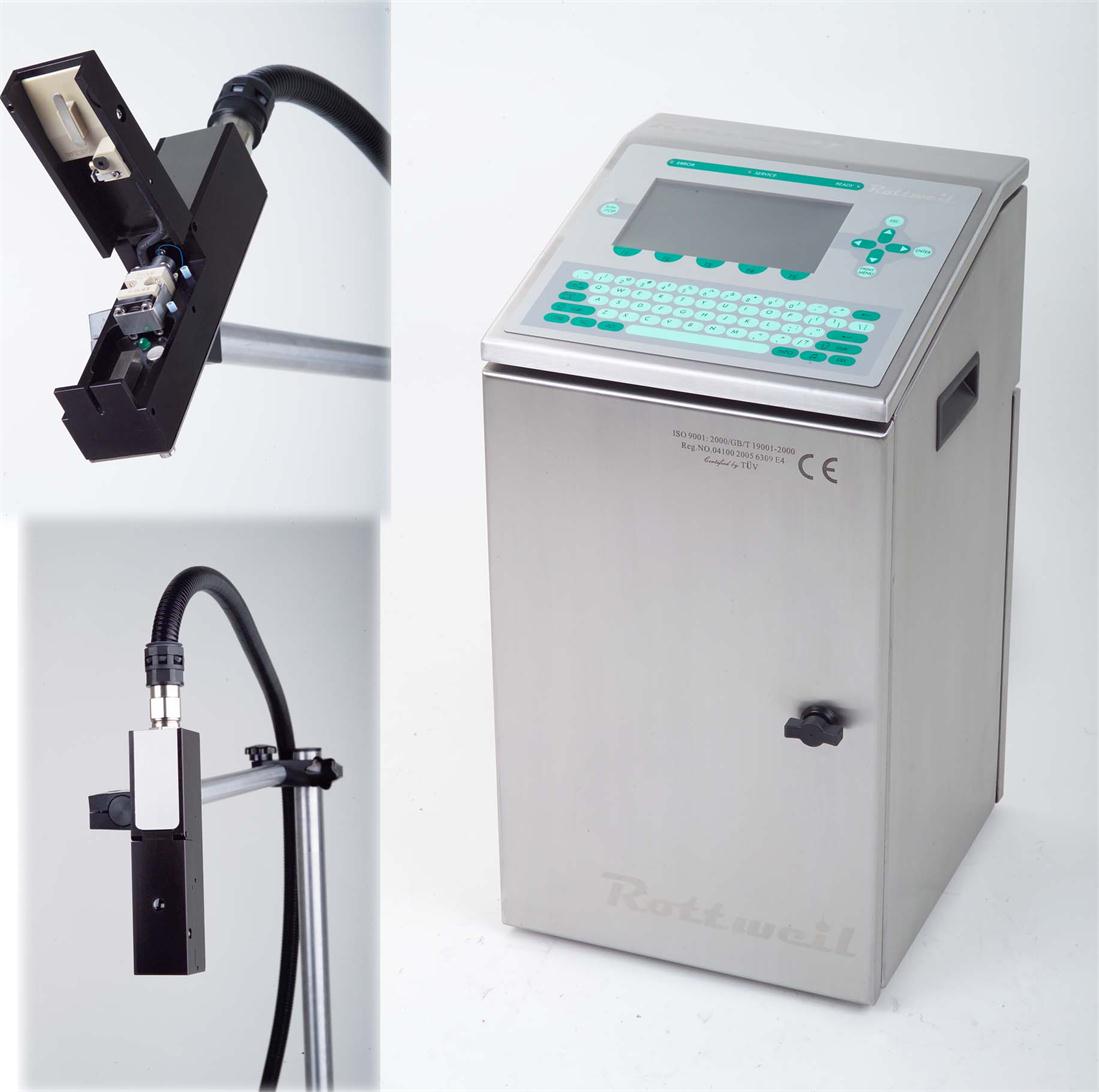

Rottweil I-Jet continuous inkjet printer (CIJ) is engineered for industrial non-contact coding and marking application, capable of printing from 1~4 lines of text, nozzle 55um / 70um. Utilize the latest Germany technology, LINUX operating system, stable and reliable ink system, 7” TFT color screen, simple operation, easy maintenance and economy. Specifically designed to meet basic coding across a wide range of substrates, it is ideal for printing date, time, batch number, graphics, trademarks, etc. Logo can be created by individual user on printer or PC, enabling any logo to be easily printed.

Rottweil I-Jet 442MB continuous inkjet printer (CIJ) is engineered for industrial non-contact coding and marking application, capable of printing from 1~4 lines of text, nozzle 42um. Utilize the latest Germany technology, LINUX operating system, stable and reliable ink system, 7” TFT color screen, simple operation, easy maintenance and economy. Specifically designed to meet basic coding across a wide range of substrates, it is ideal for printing date, time, batch number, graphics, trademarks, etc. Logo can be created by individual user on printer or PC, enabling any logo to be easily printed.

Utilize fast dry ink, to those that offer outstanding adhesion to film, glass, metal, plastic, PE, PVC, paper, wood and rubber. In addition, different inks will be supplied according to your particular application, such as standard ink, pigment ink, food grade ink, ethanol resistant ink, UV ink, etc.


Main Feature:

  • 32 digits embedded LINUX operating system, five CPU chips
  • Advance diaphragm pump, overload protection
  • USB flash disk, save/restore print message & coding easily
  • Solvent bottle detector, ensures smooth running
  • Pop-op window for regular maintenance (2,000 hours)
  • TFT color screen, QWERTY int’l standard keypad
  • CE / ISO9001 certified



Interface & Communication

  • TFT color screen, QWERTY int’l standard keypad
  • USB port-easy upgrading, easy save/restore of print text & config
  • Ethernet port (10/100MB)
  • RS232/485 port



Electronic & Software Features:

  • 32 digits embedded LINUX operating system
  • 5 CPU chips adopted, multi-tasks operation is available
  • User friendly interface, WYSIWYG message/graphic/logo editing
  • Storage memory 40MB
  • “Run / Stop”hot key to start and shut down
  • “INFO”hot key to display fault log
  • USB/Ethernet software automatic upgrading
  • Pop-op window for regular maintenance (2,000 hours)
  • Real time and date calendar
  • Three print mode: High Speed, Standard, and Graphic to meet different applications
  • Message format: Horizontal-reverse, Vertical-reverse, Negative, Bold, Character width
  • Defined grid value to move the editing cursors at certain dot
  • 3 counters & 4 shifts, automatically
  • Graphic/Logo editing software
  • OPS (Encoder direction recognition and print compensation function)
  • DMS (Distance Measuring System) using encoder signals
  • Password access to different level of users
  • Multi operation languages available
  • Movie player, to put training clips in USB disk, for operators (Optional)



Hydraulic System:

  • Compact design
  • Full automatic pressure control
  • Full automatic viscosity control
  • Temperature sensor to assist accurate viscosity control under harsh environment
  • Diaphragm pumps with reliability, longer life, low maintenance cost, high contrast printing
  • No need compressed air to power
  • Pressure pump overload protection, ensure more endurable & long life
  • Electrical control system completely separated design from hydraulic system
  • 600ml ink/solvent bottle, easy to refill with no stop running
  • Solvent bottle detector, insufficient alarm
