Overview

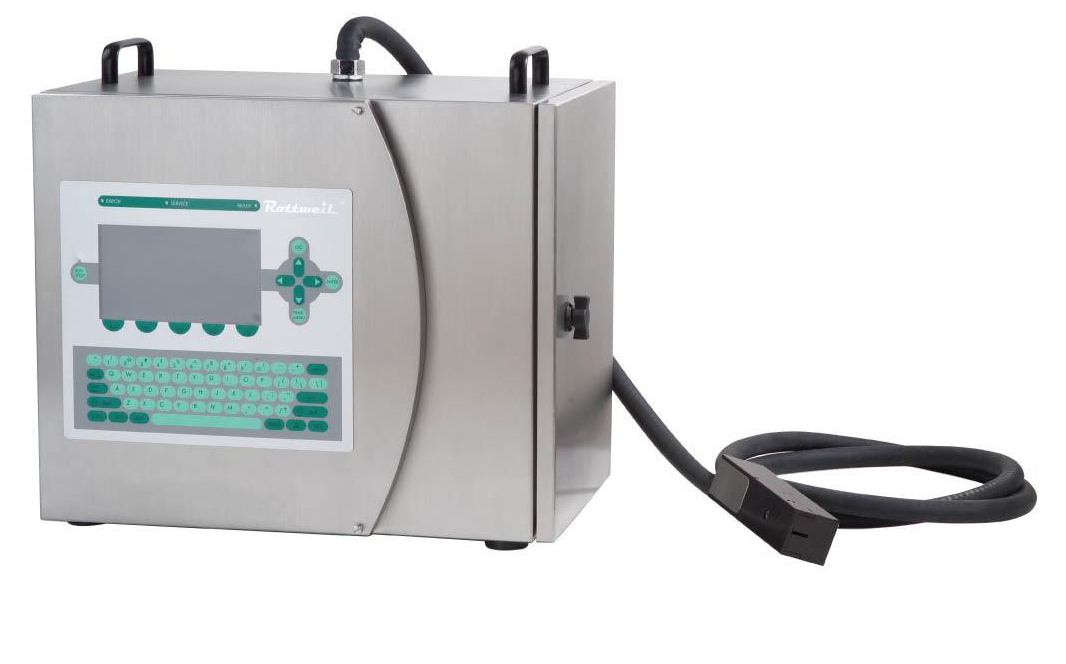

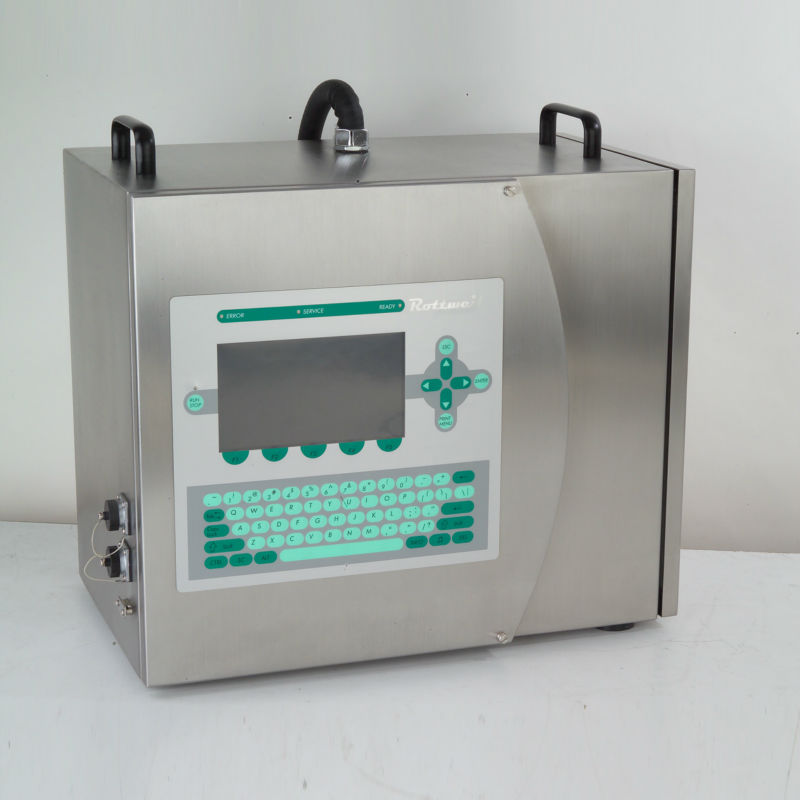

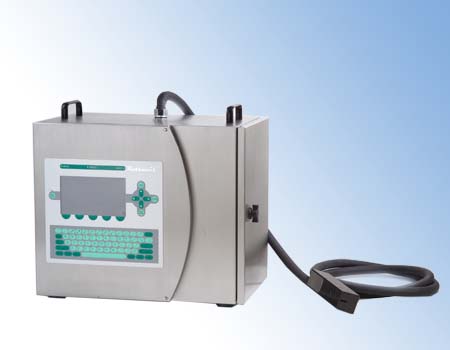

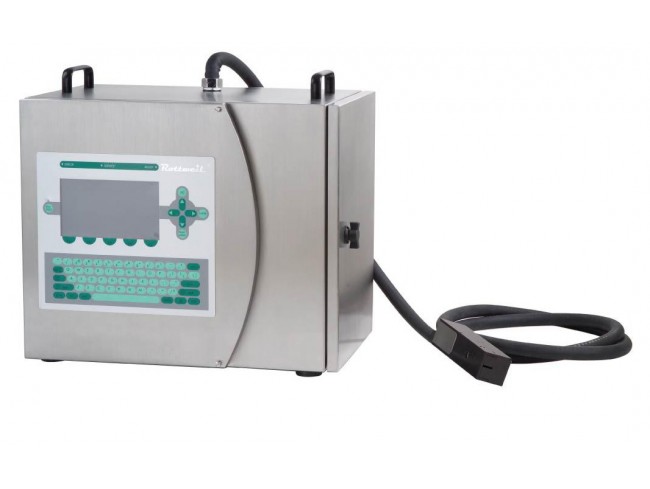

Rottweil E-Jet continuous inkjet printer (CIJ) is engineered for industrial non-contact coding and marking application, capable of printing from max 5 lines of text, nozzle 55um (or 70um optional). Stable and reliable hydraulic system, Germany design.32 bit embedded LINUX operating system, 5 CPU chips, TFT color screen, QWERTY int’l standard keypad. USB port-easy upgrading, easy save/restore of print text & config. Maintenance reminding function, solvent bottle detector, nozzle self-cleaning function, solvent recycling system design, etc provides you all-round services.

Low utilization cost and low maintenance cost, specifically designed to meet basic coding across a wide range of substrates, it is ideal for printing date, time, batch number, graphics, trademarks, etc. A wide selection of 5、7、9、11、12、15、16, 24, 32 dots print mode, multi-fonts and multi languages available.

Utilize fast dry ink, to those that offer outstanding adhesion to film, glass, metal, plastic, PE, PVC, paper, wood and rubber. In addition, different inks will be supplied according to your particular application, such as standard ink, pigment ink, food grade ink, ethanol resistant ink, UV ink, etc.

Main Feature:

  • LINUX operating system
  • Regular maintenance remind function
  • Solvent bottle detector
  • Nozzle self-cleaning function
  • Ethernet port
  • Training movie clips play function (Optional)
  • Low Price, but great performance
  • Low cost in both ownership and daily use
  • Low maintenance cost for main parts
  • Low price for consumables, but original
  • Regular maintenance only changes filters
  • User friendly pop-up window to remind changing filters
  • Solvent recovery system, to reduce solvent consumption (optional)
  • Magnetic stirrer, pigment
  • Simple Design, Easy Use

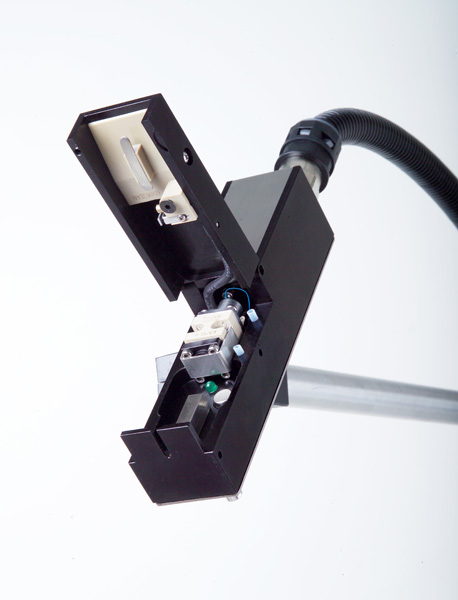

  • Head embedded valves for ink on and bleed, to shut ink line immediately when power off
  • Magnetic shielded print head cover
  • Magnifying glass to observe the ink breaking drop shape
  • 4-screws to adjust alignment
  • Separated Charging Electrode
  • Positive air access available, to ensure the print head clean, under dust environment
  • Distance from print head to print surface 1~30mm
  • Back-up tube at print head
  • L shape head available
  • User Friendly Software
  • 32 digits embedded LINUX operation system, five CPU chips
  • 7” TFT color screen
  • WYSIWYG type of display
  • Int’l standard QWERT keypad
  • SC hot key to select special characters
  • PRINT MENU hot key to start/stop print instantly
  • INFO hot key to check running history and error list
  • MEDIA hot key to play training videos via USB disk, optional
  • Build-in logo editor to create/edit logos easily at any time



  • Electronic & Software Features
  • 32 digits embedded LINUX operation system
  • User friendly interface, WYSIWYG display
  • Storage memory 40MB
  • “RUN/STOP” hot key to start/shut down printer automatically
  • “INFO” hot key to list the history of errors to ease maintenance
  • USB/Ethernet software upgrading
  • Pop-up window to remind changing filters in every 2000 hours
  • Real time and date with calendar
  • Three print mode: High Speed, Standard, Graph
  • Text format: Horizontal-reverse, Vertical-reverse, Negative, Double Space, Bold, Character Width
  • Defined grid value to move the editing cursors at a certain dot you need
  • 3 counters & 4 shifts, automatically
  • OPS (Encoder Direction Recognition & Printing Compensation Function)
  • DMS (Distance Measuring System)
  • Passwords give access to different level of users
  • Multi operation language available
  • Instruction/training movie clips play function via USB disk, optional



Hydraulic System:

  • Compact design
  • Diaphragm pumps ensures the economical operation and reliable printing capability
  • Long life and low maintenance cost
  • High contrast printing
  • Solvent bottle detector, insufficient alarm
